Stone Coated Roof Tile Producing Line
Stone Coated Roof Tile Producing Line
Stone Coated Roof Tile Producing Line
لمزيد من المعلومات ووقت التسليم والأسعار، يرجى مراسلتنا عبر البريد الإلكتروني!
نظرة عامة على المنتج

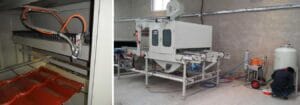

The Stone Coated Metal Roof Tile Production Line is an advanced system designed to transform flat metal sheets into high-quality colored stone-coated roofing tiles through a series of processes including forming, coating, and sanding.

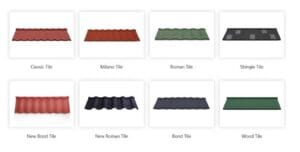

Tiles produced by this line are not only visually appealing but also highly durable, fire-resistant, and waterproof, providing long-lasting protection and aesthetic enhancement for residential, commercial, and industrial buildings. The Stone Coated Roof Tile Producing Line ensures consistent product quality, efficient production, and superior roofing performance, making it an ideal solution for manufacturers seeking premium stone-coated metal roofing products.
رسومات ملف تعريف المنتج
المعايير الفنية
| Component | Parameter Details | Feature Description |
|---|---|---|
| Base Coating Module | 3300×1600×2200 mm; 120# steel frame; 0.75kW drive motor | HVLP spraying; PLC-controlled reciprocating spray |
| Granule Application | 8000×1600×2500 mm work envelope; 1.5kW chain drive | Triple conveyor sand recycling; 16-vent air knife system |
| Top Coating Module | Same as base coating module | Diaphragm pump feed system |
| Drying Chambers | 6.5×3×3 m (L×W×H) internal space; 100mm insulated panels | 4×750W centrifugal blowers; Precision temperature control |

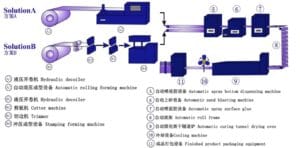

Flow Chart
عرض تفاصيل المنتج
