Advanced W Beam Guardrail Roll Forming Machine
Advanced W Beam Guardrail Roll Forming Machine
Advanced W Beam Guardrail Roll Forming Machine
For More information, Delivery Time And Prices, Please Mail Us!
Product Overview
The W Beam Guardrail Roll Forming Machine is engineered for the mass production of W-shaped highway guardrails commonly installed on expressways, bridges, and roadside safety zones. This machine forms steel coils into corrugated W beams with precise rib geometry, ensuring energy absorption and impact resistance during vehicle collisions. The line typically includes feeding, servo punching for bolt holes, roll forming, hydraulic cutting, and stacking. Designed for high-speed continuous production, it supports multiple thicknesses and steel grades including galvanized and weather-resistant steel. It is widely used in transportation infrastructure projects and complies with international road safety standards.

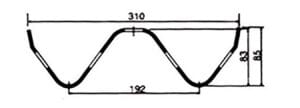

Product Profile Drawings
Technical Parameters
| Item | Specification Details |
|---|---|
| Production Capacity | Maximum speed: 15 m/min |
| Material Thickness Range | 1.0-5.0 mm |
| Profile Length Capacity | 360 mm – 7 m |
| Yield Strength | 350-550 MPa |
| Control System | Siemens PLC |
Production Flow Chart

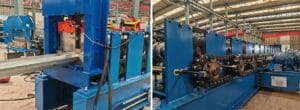

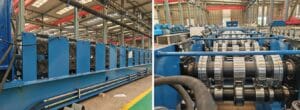

Product Detail Display

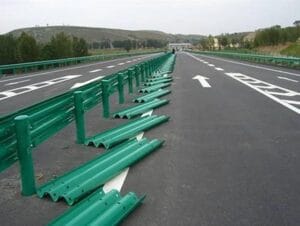

Application

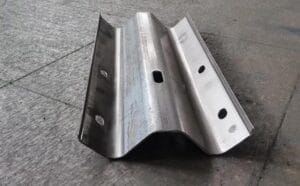

Finshed Product
why choose us
