Product Overview
The C89 Light Gauge Steel Framing Machine is a fully automatic system designed for producing light gauge steel structural components used in residential and modular construction. Also known as the C89 light steel cold-formed framing system, it is equipped with 11 precision roll forming stations that continuously bend galvanized steel coils into high-accuracy profiles at room temperature.
This advanced equipment integrates multiple punching and cutting functions, including swage, lip cut, web notch, service hole, end truss, and dimple punching. Through intelligent control and automatic coding, the finished profiles are precisely formed, cut to required lengths, printed with serial numbers, and ready for on-site assembly according to design drawings.
The C89 Light Gauge Steel Framing Machine enables mass production of light steel house frames, ensuring faster installation, consistent quality, and minimal labor requirements. It is an ideal solution for the fabrication of light steel villas and residential buildings up to 3.5 stories, offering both efficiency and reliability in modern steel framing construction.

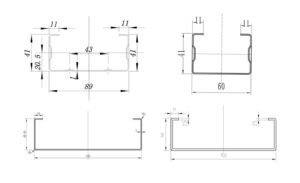

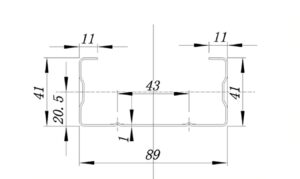

Product Profile Drawings
Technical Parameters
| Item | Specification Details |
|---|---|
| Machine Name | Light Steel Frame Machine |
| Section Size | 89*41 mm |
| Material Thickness | 0.8-1.2 mm (G300-G550 galvanized, galvanized plate) |
| Material Width | 180 mm-182 mm |
| Standard Production Speed | 30 m/min |
| Maximum Production Speed | 50 m/min |
| Motor Power | 7.5 kW |
| Power Requirements | 3-phase 380V 50Hz (can be configured as required) |
| Hydraulic Power | 5.5 kW |
| Hydraulic Tank Capacity | 100 L |
| Hydraulic Cooling Method | Air cooling |
| Hydraulic Pressure Adjustment | Computer settings |
| Host Control Mode | Cordless remote control (standard configuration) |
| Frame and Truss Stamping Dies | Dimple screw holes, chamfers, web through holes, small edge shears, pipeline holes, web shrinkage, shear, web foundation holes, grouting holes |
| Product Accuracy | ±0.5 mm |
| Inkjet Printer | Dual nozzles, waist-high spraying on both sides (printing settings available) |
| Machine Size | 40008001200 mm |
| Machine Weight | 3000 kg |
| Machine Color | According to the company’s standards |
| Decoiler Load & Function | 3000 kg, automatic unwinding |

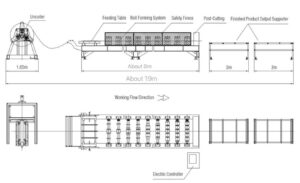

Production Flow Chart
Product Video
Product Detail Display
Application
Finshed Product
