High Speed Glazed Tile Roof Sheet Roll Forming Machine
High Speed Glazed Tile Roof Sheet Roll Forming Machine
High Speed Glazed Tile Roof Sheet Roll Forming Machine
For More information, Delivery Time And Prices, Please Mail Us!
Product Overview
The High Speed Glazed Roof Sheet Roll Forming Machine is an advanced production system engineered to manufacture decorative and durable glazed metal roofing sheets. Designed for efficiency and precision, this equipment continuously feeds and shapes metal coils through a series of hardened rollers to produce elegant tile profiles with a smooth glazed finish.
By combining high-speed forming technology with intelligent automation, the machine ensures stable performance, accurate dimensions, and superior surface quality. The glazing design not only enhances the visual appeal of the tiles but also provides added protection against corrosion and weathering.
Built for long-term reliability and consistent output, the High Speed Glazed Roof Sheet Roll Forming Machine is the perfect solution for roofing manufacturers seeking high productivity, aesthetic versatility, and reduced production costs in modern metal roofing applications.
Technical Parameters
| Category | Parameters |
|---|---|
| Material | Pre-painted steel, galvanized steel, aluminum-coated steel |
| Thickness Range | 0.2 – 0.8 mm |
| Roller System | 13-stage forming (customizable), 45# steel rollers with chromium plating |
| Output Speed | 15 – 20 m/min (excluding embossing process) |
| Drive System | Ø75 mm shafts made of 40Cr alloy steel, chain-driven, single-station operation |
| Control | Mitsubishi PLC and frequency converter |
| Cutting | Hydraulic shear equipped with Cr12Mov blades (quenched to HRC 58-62° hardness) |
| Power Supply | 415V / 3 Phase / 50 Hz (customizable) |
| Main Motor Power | 7.5 kW |
| Hydraulic Unit | 3 kW |
Flow Chart
Product Video
Product Detail Display

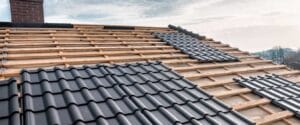

Application
