High Speed T35 Roof Sheet Roll Forming Machine
High Speed T35 Roof Sheet Roll Forming Machine
High Speed T35 Roof Sheet Roll Forming Machine
For More information, Delivery Time And Prices, Please Mail Us!
Product Overview
The High Speed T35 Roof Sheet Roll Forming Machine is engineered to manufacture T35 trapezoidal panels commonly used throughout the Algerian construction industry. Designed for continuous, rapid production, the line delivers stable performance, accurate profiling, and consistent panel quality — making it suitable for high-volume roofing and wall panel manufacturing.

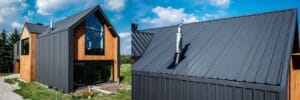

T35 sheets have become one of Algeria’s mainstream choices due to their excellent load-bearing strength and clean architectural appearance. They are broadly applied in fuel stations, factory roofs, agricultural storage buildings, boiler rooms, and steel structure workshops, offering both durability and versatility for modern projects.
Built with reinforced mechanical components and guided by an intelligent control system, this machine provides long-lasting reliability and minimized maintenance requirements. Its efficient forming process and strong productivity make the High Speed T35 Roof Sheet Roll Forming Machine an economical and dependable solution for contractors, builders, and panel manufacturers across the North African region.
Product Profile Drawings
Technical Parameters
| Parameter | Specification |
|---|---|
| Product type | T35 trapezoidal roof sheet / roof panel |
| Material | PPGI / GI (pre-painted galvanized steel) |
| Material thickness | 0.4 – 1.2 mm |
| Feeding width | 1000 mm / 1250 mm |
| Roll forming stations | 27 stations (incl. rubber feeding shafts) |
| Rolling shaft material / diameter | 45# steel, Ø90 mm, hardened/chrome plated |
| Rollers | 45# steel, chrome plated (Cr thickness 0.05 mm) |
| Transmission | Gearbox transmission with bevel gears, interlinked chains |
| Work speed | 0 – 35 m/min (adjustable) |
| Decoiler capacity | 15 T (hydraulic), max coil width 1250 mm |
| Main drive power | 15 kW + 15 kW |
| Cutting system | Non-stop fly tracking shearing, GB-Cr12 blades |
| Cutting accuracy | ±2 mm |
| Stacker | 12 m auto stacker, stack height ≤300 mm |
| Control system | Siemens PLC & HMI, Schneider electricals, Omron counter |
| Warranty | 1 year; lifetime technical support |
Production Flow Chart

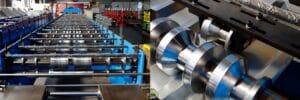

Product Detail Display
Application
