The PBR Panel Roll Forming Machine is a roll forming machine specifically designed for manufacturing PBR metal roof and wall panels, primarily targeting markets in the United States and other regions that utilize similar metal building panel profiles. PBR panels feature trapezoidal stiffeners and an exposed screw fastening system, making them widely used in commercial buildings, industrial facilities, agricultural structures, storage facilities, and steel-framed constructions.

For roof panel manufacturers, metal building material suppliers, and steel structure companies in the U.S. market, the آلة تشكيل لوحة PBR enables enterprises to produce PBR panels in various lengths according to project requirements, thereby enhancing production scheduling flexibility. The machine’s actual processing capacity and production efficiency must be determined by comprehensively considering material properties, panel profile structures, and equipment configurations.

المواصفات الرئيسية

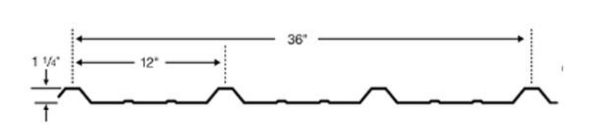

ملف تعريف المنتج

عملية المنتج

إزالة التربة

Before production begins, the metal coil is installed on the roll-up unit. The roll-up unit is responsible for the continuous supply of plate to the subsequent processing process, providing a stable material input for continuous rolling production. According to the weight, internal diameter, outer diameter and width of the roll, a corresponding roll opening configuration can be chosen.

Feeding and Guiding

After the metal coil is unfolded, the plate enters the transportation and orientation area. The steering mechanism is used to adjust the position of the material, reduce the shifts that may occur during the transportation process, and allow the plate to enter the forming roller in the predetermined direction.

For the آلة تشكيل لوحة PBR, stable feeding helps to control the width of the finished sheet, the location of the reinforcement and the edge structure. The actual orientation method needs to be designed in conjunction with plate drawings and material specifications.

تشكيل لفة

After the transportation is completed, the metal sheet passes through multiple sets of rollers in succession. Each set of rollers gradually changes the shape of the sheet, so that the flat metal strip gradually forms the trapezoidal reinforcement, plate surface structure and edge profile required for PBR sheet.

Rolling wheel design is an important factor affecting the finished sheet type. Different roof panel types may differ in rib height, rib spacing, and edge joining structure, so the corresponding formed roller should be designed according to the customer’s confirmed PBR panel drawings, rather than directly applying the roller configuration of other panel types.

The reasonably designed PBR Panel Roll Forming Machine can help the production line maintain a stable forming state and meet the requirements of mass production for the consistency of the panel shape. The specific forming stages, roller structure, transmission mode and production speed need to be determined according to the thickness of the material, the complexity of the plate type and the capacity requirements.

Length Measurement and Cutting

After forming the sheet metal, it enters the cutting process. The control system completes the plate cutting according to the pre-set length requirements and the corresponding cutting device. The disconnect method and control scheme should be selected in conjunction with the structure of the equipment, the plate specifications and the production cadence.

For roof panels and wall panels produced on order, fixed cutting helps meet the length requirements of different construction projects. The specific length control method, the disconnect accuracy and the production speed shall be based on the finally confirmed equipment scheme.

Product Collection

After the cutting is complete, the finished panels are transported to the collection area for inspection and stacking. The operator can check the length of the plate, the shape of the reinforcing, the surface condition and the alignment of the dimensions to ensure that the product meets the confirmed production requirements.

By rationally scheduling the finished product collection and inspection process, it is possible to prepare for subsequent packaging, storage and transportation. For manufacturers supplying construction projects, a stable finished product sorting process also helps to improve the convenience of order delivery.

مزايا المنتج

Panel forming consistency

The PBR sheet has a specific stiffener and edge structure, which needs to be designed according to the corresponding drawings. The آلة تشكيل لوحة PBR uses multiple sets of rollers to form step by step, helping to control the geometry and dimensional consistency of the finished panel to meet the needs of mass production of roofing and wall panels.

Customized Machine Configuration

Different customers may have different requirements for PBR plate type, material thickness, coil width and productivity. HENER can evaluate the appropriate equipment configuration according to the sheet drawings and production targets provided by the customer, so that the PBR Panel Roll Forming Machine is more suitable for actual processing needs.

Continuous rolling production

Through continuous processes such as roll-cutting,feeding, roll forming and severing, the equipment is able to process metal rolls into a specified plate type. A reasonable production line configuration helps enterprises arrange batch orders and organize production according to the needs of different projects. The actual production efficiency depends on the material properties, the plate design, the cutoff cycle and the equipment configuration.

Flexible Panel Lengths

PBR roofing and wall panels often need to be determined in length according to the design dimensions of the building project. Equipped with the appropriate length cutting system, the PBR Panel Roll Forming Machine can produce sheets of different lengths according to confirmed orders, facilitating project delivery and production scheduling.

Suitable for Common Roofing Materials

Depending on the equipment design, the production line can be used to process materials such as galvanized steel, aluminum-zinc steel and color coated steel that meet the requirements. Different materials vary in thickness, strength, coating and surface state, so the material specifications need to be confirmed before the device is designed to ensure that it is suitable for the corresponding roller and cut process.

مجالات التطبيق

المباني التجارية

PBR sheet metal is commonly used in commercial buildings, warehouses, maintenance workshops and other construction projects that require metal roofing or wall enclosure. The PBR Panel Roll Forming Machine can produce the corresponding sheet according to the confirmed sheet type requirements and provide product processing solutions for metal building materials suppliers and project contractors.

Industrial Facilities

Factories, manufacturing plants, and distribution centers often use metal panel systems for large roof and wall areas. A آلة تشكيل لوحة PBR enables panel manufacturers to produce profiles for these projects according to confirmed drawings and order lengths.

Agricultural construction

PBR panels can also be used in agricultural warehouses, agricultural machinery storage facilities, livestock related buildings and other agricultural buildings. The choice of specific materials, surface coatings and plate types shall be determined in accordance with the building use, environmental conditions and project requirements.

المباني الهيكلية الفولاذية

Steel structure construction projects often require the processing of roof panels and wall panels of different lengths depending on the building design. PBR Panel Roll Forming Machine can provide sheet metal manufacturers with corresponding roll processing capabilities to help companies arrange production and delivery of finished products according to orders.

Roof and wall panel manufacture

ال آلة تشكيل لوحة PBR can be used to produce PBR sheet metal that meets the requirements of the specified sheet type for roofing panel manufacturers, metal building materials dealers and steel structures. By confirming the plate type, material, length and production plan, companies can organize the corresponding production tasks for different customers and construction projects.

خاتمة

عند اختيار أ آلة تشكيل لوحة PBR, you first need to clarify the specific structure of the finished board, not just confirm the product name. By checking the plate drawings, material thickness, roll width and expected capacity, the suitable forming wheel design and production line configuration can be further determined.

If you plan to manufacture PBR metal roof or wall panels for the U.S. market, we welcome you to share panel profiles, material specifications, and production requirements with HENER. We will communicate the appropriate equipment configuration and production plan based on your actual application.
