Product Overview
The High Speed Corrugated Metal Roof Sheet Machine is designed for fast and precise production of corrugated roofing sheets used in roofing, wall cladding, fencing, and screening.
Applications:
Suitable for residential buildings, factories, warehouses, and public facilities such as schools, hospitals, and offices.
Production Details:
Starting from a 1200mm wide flat coil, the machine forms the sheet into a corrugated profile. After rolling, the effective width with a single-wave overlap is 1000mm, making installation and quantity calculation easier.
Advantages：
The wave design reduces rainwater contact, lowers noise, and improves insulation. With high speed, accuracy, and stable performance, this machine is ideal for large-scale metal roofing production.
High-Speed Corrugated Metal Sheet Machine Product Profile Drawings
Technical Parameters
| Item | Specification Details |
|---|---|
| Raw Material | PPGI, PPGL |
| Material thickness | 0.13-0.3 mm |
| Machine Frame | 400 mm H beam structure, with casting iron brand structure |
| Material Of Rollers | High grade 45# forged steel, Chromed treatment |
| Forming Stations | Roller stations: 21 rows |
| Diameter Of Shafts | Φ80mm Solid |
| Material Of Shafts | High Grade 45#, With Heat Treatment |
| Forming Speed | 50 M/Min |
| Voltage | 380v/50hz/3p (As Requested) |
| Transmission Way | By gear box |
| Main Motor | 15 KW |
| Cutting Blade Material | Gcr12 quenched treatment |
| Cutting Type | Hydraulic tracking cutting |
| Driving Method | By pillar type Cylinder |
Flow Chart

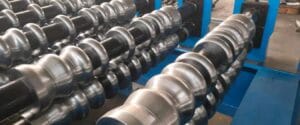

Product Detail Display
Product Video
Application

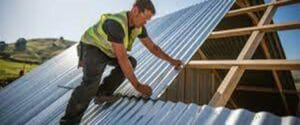

Corrugated sheets produced by this machine are used in a wide range of building projects:
①Residential roofing
②Factories and industrial workshops
③Warehouses and logistic centers
④Schools, hospitals, public facilities
⑤Perimeter fencing and protective screening
⑥Agricultural buildings and storage units
Corrugated roofing offers strong weather resistance, good drainage, and easy installation, making it ideal for both urban and rural construction.
