Our solar bracket panel roll forming machine is an intelligent system that integrates high precision and flexibility. According to the specific needs of different projects, the equipment can be equipped with a hydraulic cutting or sawing system, and can be optionally equipped with a hydraulic/mechanical stamping device to realize the flexible switching of pre-punching or post-punching.

It is worth noting that the solar bracket panel roll forming machine supports manual or automatic wing edge adjustment systems. This innovative design allows manufacturers to quickly switch between multiple specifications of profiles on the same production line, which greatly improves the response speed of factories to diversified orders.

Main specification

In order to ensure the transparency and professionalism of the production process, the following are the core physical parameters of our solar bracket panel roll forming machine：

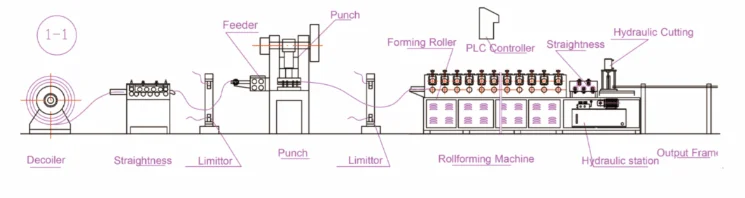

Production Flow Chart

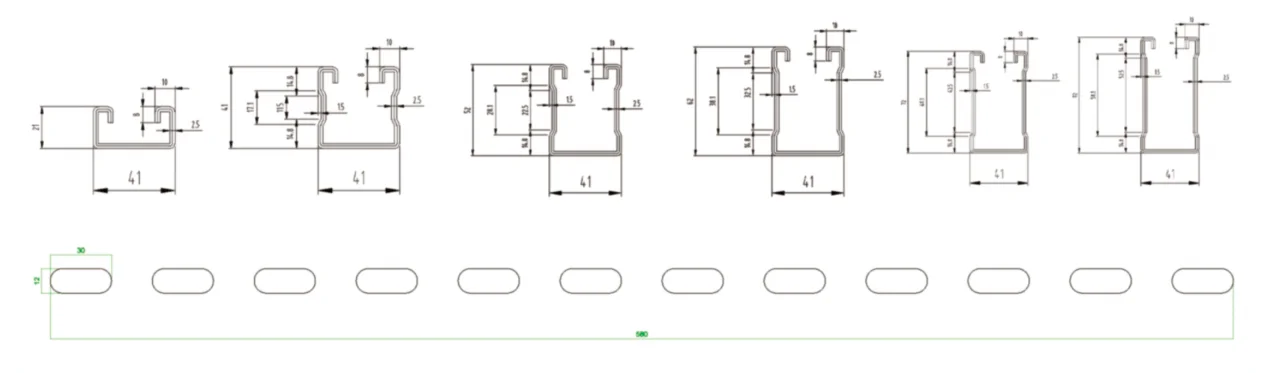

Profile drawing

Core functions and technical highlights

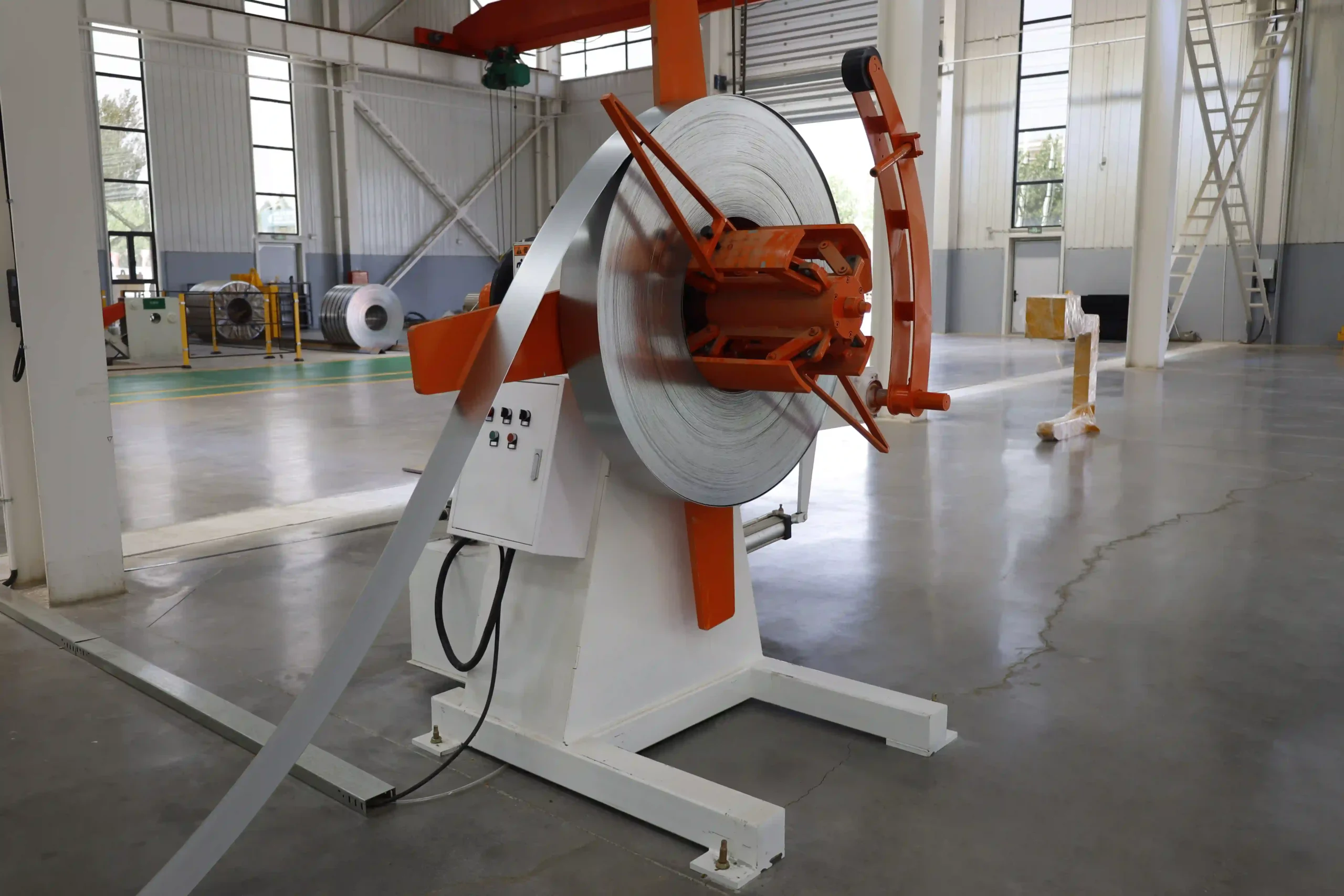

1.Decoiler

Our solar bracket panel roll forming machine is equipped with a high-performance decoiler, which is specially designed for stainless steel, aluminum alloy and high-strength special alloy coils. Stable tension control and precise central guidance ensure the stability of feeding in the continuous production process.

2.Individual Punch Unit

The high-precision hydraulic stamping device can complete the complex hole layout according to the project drawings. The intelligent logic of solar bracket panel roll forming machine ensures the absolute accuracy of the punching position, thus providing a guarantee for the rapid bolt installation downstream.

3.Industrial-grade GCr15 roller process

The roller is the “heart” of the molding machine. We insist on using GCr15 mold steel to ensure the hardness and wear resistance of the roller under long-term high-strength work. This not only improves the surface finish of the profile, but also ensures that the perfect geometric contour can be maintained even when processing 3 mm thick plates.The solar bracket panel roll forming machine is reasonably designed and can respond quickly to production needs, adapt to the forming of plates of different specifications, and meet the diversified needs of the market.

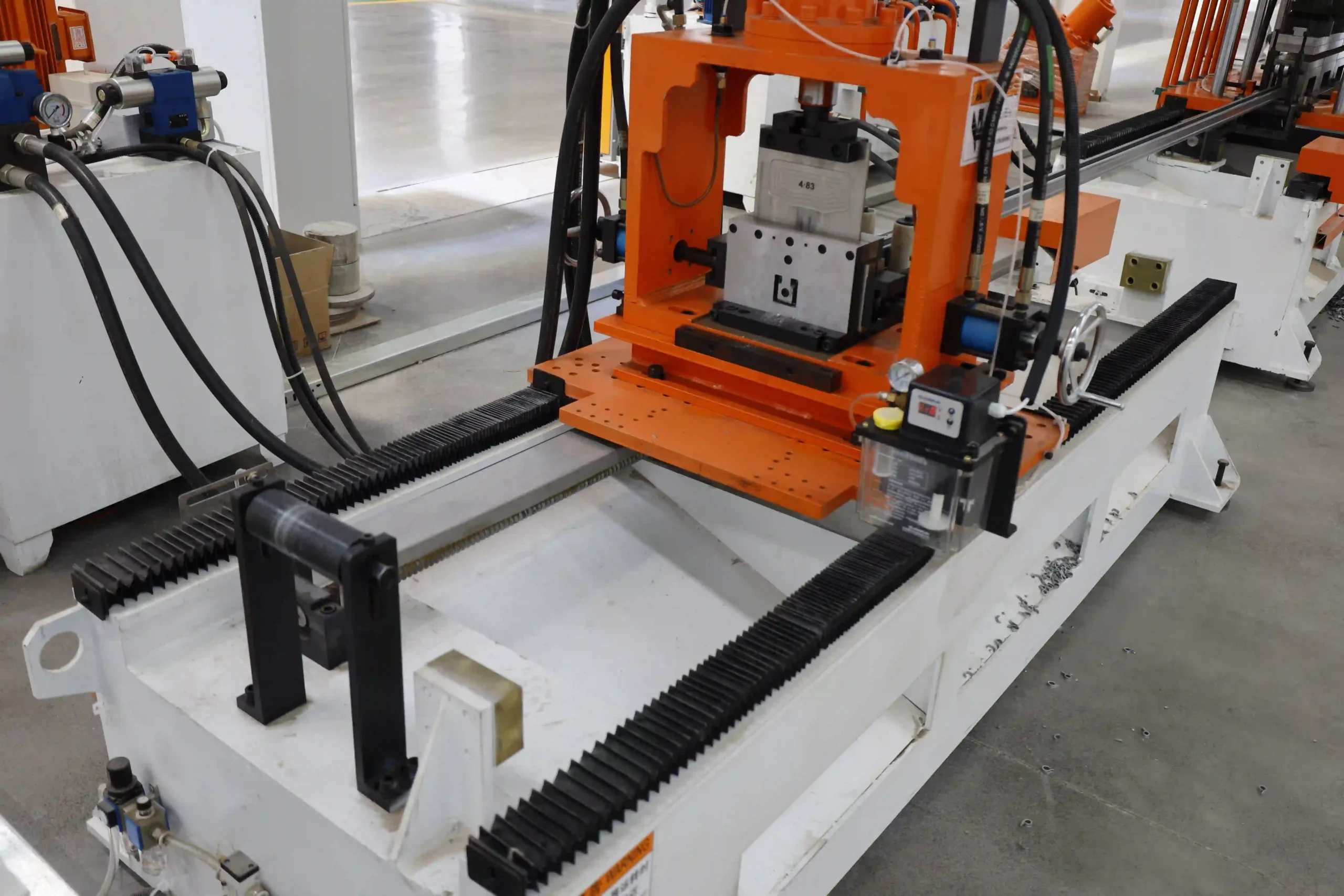

4.Cutting station

The cutting station is an important part of the solar bracket panel roll forming machine.The cutting station is designed to provide fast and accurate cutting performance during the production process. Equipped with a hydraulic cutting system, it can achieve precise length control without stopping the forming process.This greatly improves production efficiency and avoids material waste.

5. PLC system

The solar bracket panel roll forming machine intelligent PLC control cabinet and touch screen operation. The design of the control panel is humanized, the operation is simple and intuitive, and users can easily set and adjust parameters.Our PLC control cabinet can be remotely controlled via Wi-Fi. Even if you are far away, we can repair your equipment promptly.

Typical Application Scenarios

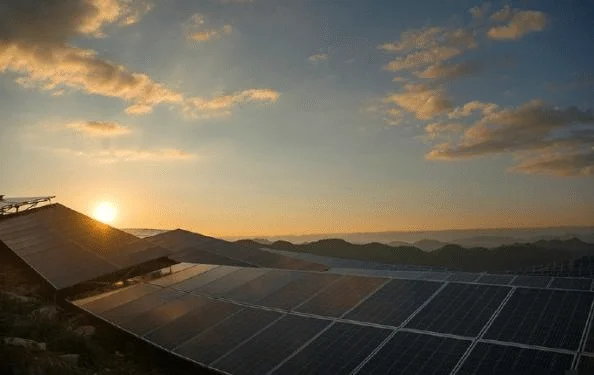

1.Large-Scale Ground-Mounted Solar PV Plants

Large-scale ground-mounted solar PV plants are one of the most important application scenarios for steel structure photovoltaic systems. These projects typically require covering large areas of land, and steel mounting structures provide strong and stable support for solar panels while adapting to various terrain conditions.

• The solar mounting system features structure is strong and can withstand extreme weather conditions such as strong winds and heavy snow.
• Flexible installation allows for adjustment of the bracket height and angle according to the terrain, maximizing the use of land resources.
• Long service life and low maintenance cost.

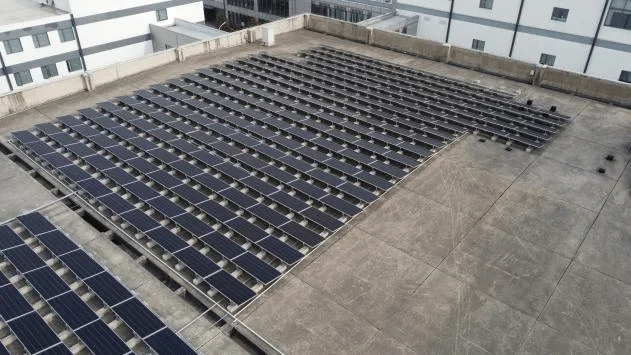

2.Commercial and Industrial Rooftop Solar Projects

Commercial and industrial rooftop solar projects are another important application scenario for steel-structured photovoltaic systems.

Many factories,warehouses, and commercial buildings have large rooftop areas, making them highly suitable for solar PV installation. Solar brackets provide reliable support and stability for rooftop solar systems, helping businesses efficiently utilize available roof space, reduce energy costs, and achieve sustainable energy solutions.

• Solar mounting systems can be custom-engineered to match specific roof structures, maximizing the utilization of available rooftop space.
• Lightweight and high strength.It has little impact on the original structure of the building.
• Easy to install, short construction period, and can quickly achieve power generation.

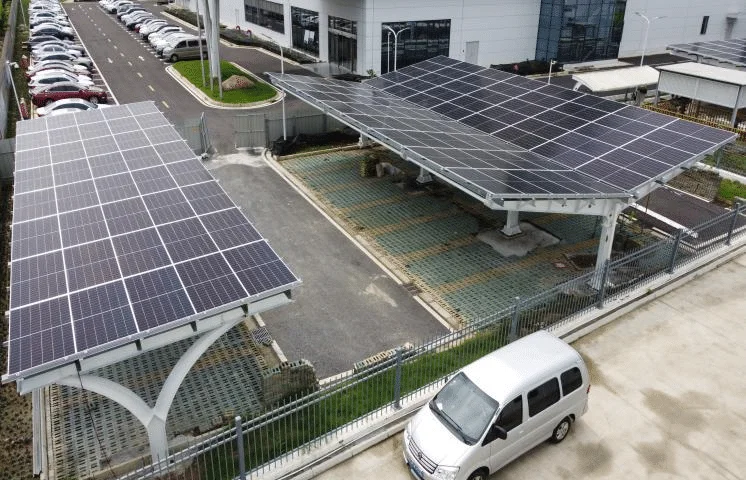

  3.Solar Carports and Parking Lot Photovoltaic Systems

Solar carports combine photovoltaic power generation with parking facilities, creating an innovative application of renewable energy. In this scenario, Solar brackets offer significant advantages by providing strong support, excellent durability, and flexible design options. They not only protect vehicles from sunlight and weather conditions but also make efficient use of parking areas to generate clean energy, making them an ideal solution for commercial, industrial, and public solar applications.

• The solar mounting system support can be designed in the form of a carport, which can not only provide shade and rain protection for vehicles, but also generate electricity.
• The structure is stable and can withstand large loads.
• Aesthetically pleasing and practical, enhancing the overall image of the parking lot.

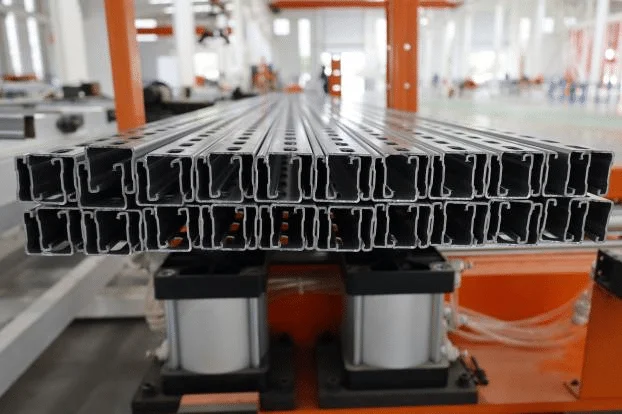

Finished Product
