Product Overview
The Tr4/ Tr5 Roof Sheet Machine is designed to manufacture high-quality TR4 and TR5 metal roofing panels with accurate profiles and smooth surfaces.
Built with a reinforced frame, hardened forming rollers, and an advanced control system, this machine delivers consistent operation, rapid production, and long-term reliability.
Perfect for industrial, commercial, and residential roofing projects, the TR4/TR5 Trapezoidal Roof Sheet Making Machine allows manufacturers to produce durable, precise, and visually appealing roofing sheets efficiently, making it an ideal solution for modern construction applications.

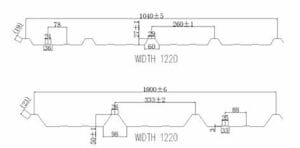

Product Profile Drawings
Technical Parameters
| Item | Specification Details |
|---|---|
| Number of rows | 20 Rows |
| Speed | 15 m/min |
| Cutting knife material | Cr12Mov |
| Roller diameter | Φ70 mm |
| Dimensions | About 9.7 * 1.4 * 1.6 m |
| Weight | About 6 tons |
| Main structure of the machine | 350H beams/450H beams (according to your needs) |
| Transmission mode | Chain drive |
| Chain size | 1.2 inches |
| Side panel | 16 mm |
| Voltage | 380 V 50 Hz three-phase or according to your needs |
| Control system | PLC control |
| Processing precision | Within 1.0 mm |
| Driving mode | Motor driver |
| Power | 5.5 kw + 4 kw |
| PLC language | Chinese + English + According to your local language |
| Rolling stock | Forged #45 steel with chrome plate |
| Length tolerance | ±2 mm |
| Thickness | 0.3-0.8 mm |
| Coil width | 1220 mm |
Flow Chart

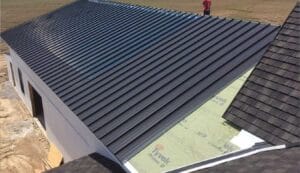

Application
